B82791H0015A016 | TDK (EPCOS)

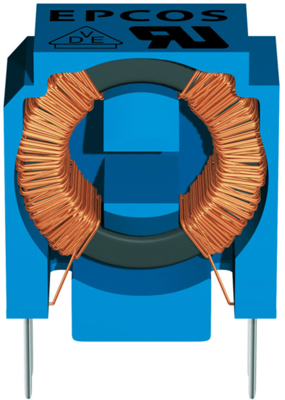

Data line choke, radial, 4.7 mH, 100 mA, B82791H0015A016
Unit Price (€ / pc.)
2.2372 € *
Standard delivery time from the manufacturer is: 28 Weeks
Double chokes, type B82791
suitable for data and signal lines.
Design: current-compensated ring core double choke
Rated voltage: 80 VDC/42 VAC
Rated current: 0.1 A
IEC climate category: 40/125/56

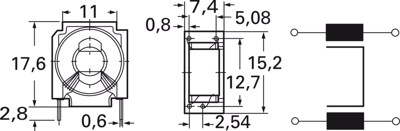

Grid: 10/15 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 4.7 mH | |
| Length | 15.2 mm | |
| Saturation current | 100 mA | |
| Design | radial | |
| DC resistance | 0.85 Ω | |
| Tolerance | -30/+50 % | |
| DC current | 100 mA | |
| Width | 7.4 mm | |
| Measuring frequency | 10 kHz | |
| Height | 17.6 mm | |
| Version | power line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Tray with 200 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
