B82791G2601N001 | TDK (EPCOS)

Power line choke, radial, 6.8 mH, 600 mA, B82791G2601N001

Order No.: 74D7822
EAN: 4099889026474
MPN:
B82791G2601N001
B82791G2601N1
TDK (EPCOS)

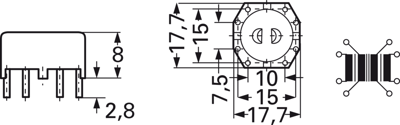

B82791G2601N001 TDK (EPCOS) Fixed Inductors Image 1

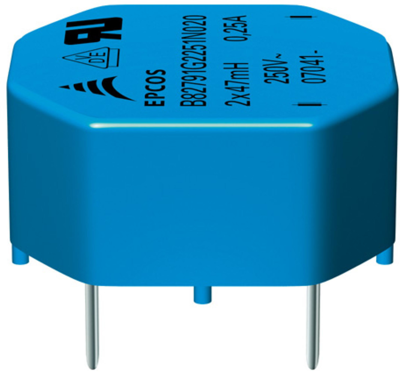

B82791G2601N001 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version power line choke
Inductance 6.8 mH
DC current 600 mA
Tolerance -30/+50 %
DC resistance 630 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.1658 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
1,386.11 € *
*incl. VAT plus shipping costs
Subject to prior sale
640 pcs.
2.1658 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82791G2601N001, EPCOS

Features

  • Without potting
  • Ferrite core
  • Suitable for wave soldering
  • RoHS-compatible
  • High resonance frequency due to special winding technique and omission of potting

Applications

  • Suppression of common-mode interferences
  • Electronic ballasts in lamps
  • Switch-mode power supplies
Technical specifications
Tolerance -30/+50 %
Width 17.5 mm
Version power line choke
DC current 600 mA
Length 17.5 mm
Height 8 mm
DC resistance 630 mΩ
Design radial
Measuring frequency 10 kHz
Inductance 6.8 mH
Articles of same specification 0
Logistics
Original Packaging Carton with 80 pieces
Customs tariff number 85045000
Compliance
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
