B82791G2401N001 | TDK (EPCOS)

Power line choke, radial, 15 mH, 400 mA, B82791G2401N001

Order No.: 74D7820
EAN: 4099889026450
MPN:
B82791G2401N001
B82791G2401N1
TDK (EPCOS)

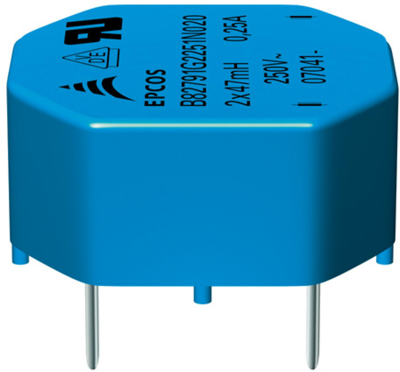

B82791G2401N001 TDK (EPCOS) Fixed Inductors Image 1
B82791G2401N001 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version power line choke
Inductance 15 mH
DC current 400 mA
Tolerance -30/+50 %
DC resistance 1.35 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.7374 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1,111.94 € *
*incl. VAT plus shipping costs
**Subject to prior sale
640 pcs.
1.7374 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82791G2401N001, EPCOS

Features

  • Without potting
  • Ferrite core
  • Suitable for wave soldering
  • RoHS-compatible
  • High resonance frequency due to special winding technique and omission of potting

Applications

  • Suppression of common-mode interferences
  • Electronic ballasts in lamps
  • Switch-mode power supplies
Technical specifications
DC current 400 mA
Width 17.5 mm
Height 8 mm
Length 17.5 mm
DC resistance 1.35 Ω
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance -30/+50 %
Inductance 15 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Carton with 80 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
