B82791G2251N020 | TDK (EPCOS)

Power line choke, radial, 47 mH, 250 mA, B82791G2251N020

Order No.: 74D7817
EAN: 4099889026429
MPN:
B82791G2251N020
B82791G2251N20
TDK (EPCOS)
B82791G2251N020 TDK (EPCOS) Fixed Inductors Image 1
B82791G2251N020 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version power line choke
Inductance 47 mH
DC current 250 mA
Tolerance -30/+50 %
DC resistance 2.4 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.1658 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
1,386.11 € *
*incl. VAT plus shipping costs
**Subject to prior sale
640 pcs.
2.1658 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82791G2251N020, EPCOS

Features

  • Without potting
  • Ferrite core
  • Suitable for wave soldering
  • RoHS-compatible
  • High resonance frequency due to special winding technique and omission of potting

Applications

  • Suppression of common-mode interferences
  • Electronic ballasts in lamps
  • Switch-mode power supplies
Technical specifications
DC current 250 mA

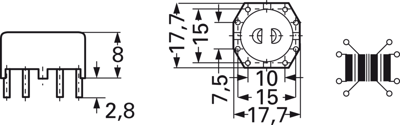

Width 17.5 mm
Height 8 mm
Length 17.5 mm
DC resistance 2.4 Ω
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance -30/+50 %
Inductance 47 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Carton with 80 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
