B82791G0015A017 | TDK (EPCOS)

Data line choke, radial, 2.2 mH, 100 mA, B82791G0015A017

Order No.: 74D7816
EAN: 4099889026412
MPN:
B82791G0015A017
B82791G15A17
TDK (EPCOS)

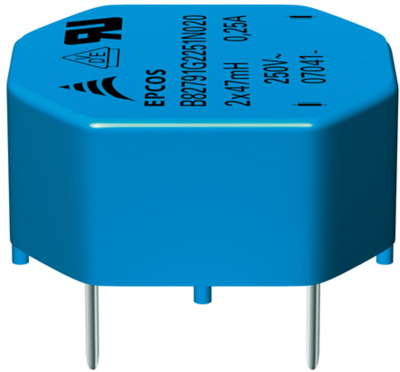

B82791G0015A017 TDK (EPCOS) Fixed Inductors Image 1

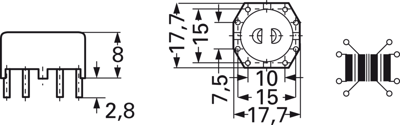

B82791G0015A017 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version power line choke
Inductance 2.2 mH
DC current 100 mA
Tolerance -30/+50 %
DC resistance 300 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.4871 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1,591.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
640 pcs.
2.4871 €
Description
Technical specifications
Download
Logistics
Compliance

Data line choke, B82791G0015A017, EPCOS

Features

  • Without potting
  • Ferrite core
  • Suitable for wave soldering
  • RoHS-compatible

Applications

  • Telephone lines (analog, ISDN)
  • Interfaces with symmetrical data transmission
  • Building services automation (EIB bus)
  • Automation engineering
Technical specifications
DC current 100 mA
Width 17.5 mm
Height 8 mm
Length 17.5 mm
DC resistance 300 mΩ
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance -30/+50 %
Inductance 2.2 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Tray with 80 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
