B82791G0015A016 | TDK (EPCOS)
Data line choke, radial, 4.7 mH, 100 mA, B82791G0015A016
Unit Price (€ / pc.)
3.6057 € *
Available: 193 pcs.
Total Price:
3.61 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6057 €
10 pcs.
3.1773 €
80 pcs.
2.8203 €
320 pcs.
2.6537 €
1280 pcs.
2.4752 €
*incl. VAT plus shipping costs
Subject to prior sale
Data line choke, B82791G0015A016, EPCOS
Features
- Without potting
- Ferrite core
- Suitable for wave soldering
- RoHS-compatible
Applications
- Telephone lines (analog, ISDN)
- Interfaces with symmetrical data transmission
- Building services automation (EIB bus)
- Automation engineering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 100 mA | |
| DC resistance | 850 mΩ | |
| Tolerance | -30/+50 % | |

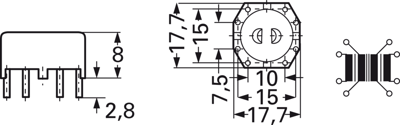

| Length | 17.5 mm | |
| Inductance | 4.7 mH | |
| Width | 17.5 mm | |
| Height | 8 mm | |
| Version | power line choke | |
| Design | radial | |
| Measuring frequency | 10 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | CN |
| Original Packaging | Tray with 80 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| Date of RoHS guidelines | 3/31/15 |
