B82790C0475N265 | TDK (EPCOS)

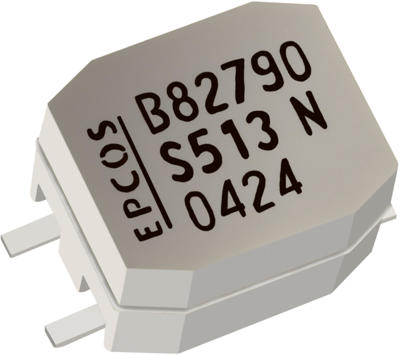

Signal line choke, SMD, 4.7 mH, 200 mA, B82790C0475N265
Unit Price (€ / pc.)
1.7136 € *
Standard delivery time from the manufacturer is: 13 Weeks
SMD choke, type TDK/Epcos B82790C./S.
Twin choke, suitable for use as current-compensated toroidal choke for signal and data lines, for example
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 200 mA | |
| DC resistance | 550 mΩ | |
| Saturation current | 200 mA | |
| Measuring frequency | 10 kHz | |
| Tolerance | -30/+50 % | |
| Length | 9 mm | |
| Height | 5.2 mm | |
| Width | 6 mm | |
| Inductance | 4.7 mH | |
| Design | SMD | |
| Version | signal line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 1,500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
