B82789C0513H002 | TDK (EPCOS)

Signal line choke, SMD 1812, 51 µH, 250 mA, B82789C0513H002

Order No.: 73D9446
EAN: 4099889007817
MPN:
B82789C0513H002
B82789C513H2
Series: B82789C0

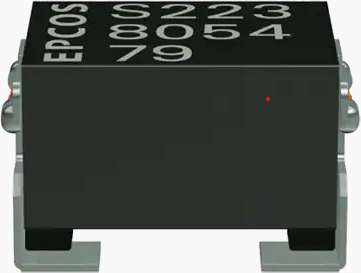

B82789C0513H002 TDK (EPCOS) Fixed Inductors Image 1

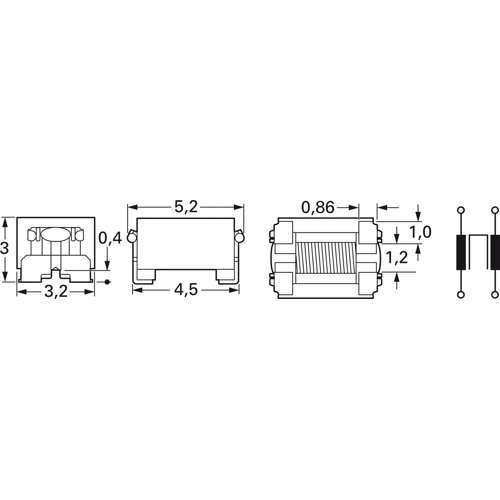

B82789C0513H002 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.9877 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2,469.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
0.9877 €

SMD data and signal line chokes, type TDK/Epcos B82789.

Twin choke. Suitable, for example, for use as current-compensated I-core choke for signal and data lines

For climate category 55/150/56, type B82789.

Technical specifications
Width 3.2 mm
Inductance 51 µH
Tolerance -30/+50 %
DC resistance 550 mΩ
Version signal line choke
Saturation current 250 mA
DC current 250 mA
Design SMD 1812
Measuring frequency 100 kHz
Length 5.2 mm
Height 3 mm
Logistics
Original Packaging Reel with 2,500 pieces
Country of origin DE
Customs tariff number 85045000
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
