B82789C0113N002 | TDK (EPCOS)

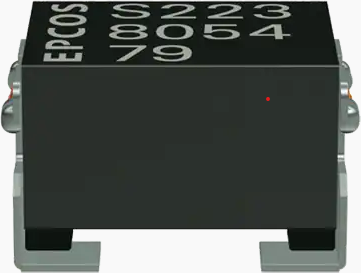

Signal line choke, SMD 1812, 11 µH, 300 mA, B82789C0113N002
Order No.: 73D9430
EAN: 4099889007787
MPN:
B82789C0113N002
B82789C113N2
Unit Price (€ / pc.)
1.071 € *
Standard delivery time from the manufacturer is: 9 Weeks
SMD data and signal line chokes, type TDK/Epcos B82789.
Twin choke. Suitable, for example, for use as current-compensated I-core choke for signal and data lines
For climate category 55/125/56, type B82789.

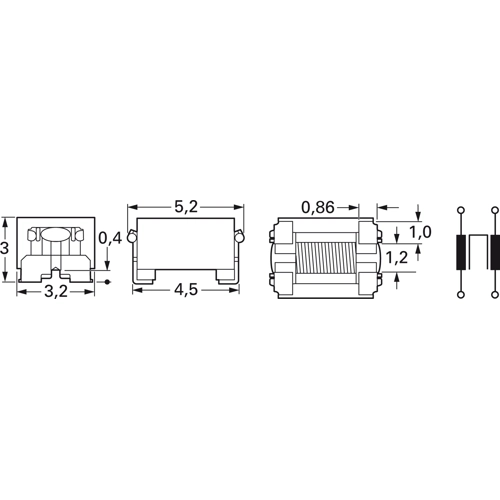

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 11 µH | |
| Length | 5.2 mm | |
| Design | SMD 1812 | |
| DC resistance | 250 mΩ | |
| Tolerance | -30/+50 % | |
| DC current | 300 mA | |
| Width | 3.2 mm | |
| Measuring frequency | 100 kHz | |
| Height | 3 mm | |
| Version | signal line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 2,500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
