B82789C0104N002 | TDK (EPCOS)

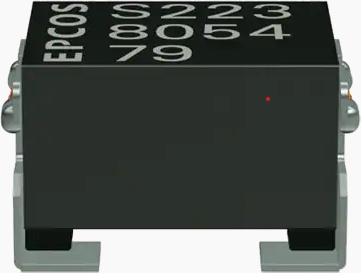

Signal line choke, SMD 1812, 100 µH, 150 mA, B82789C0104N002
Unit Price (€ / pc.)
1.0115 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
2,528.75 € *
Price list
Quantity
Price per unit*
2500 pcs.
1.0115 €
5000 pcs.
0.9282 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD data and signal line chokes, type TDK/Epcos B82789.
Twin choke. Suitable, for example, for use as current-compensated I-core choke for signal and data lines
For climate category 55/125/56, type B82789.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 150 mA | |
| DC resistance | 1.5 Ω | |
| Saturation current | 150 mA | |
| Measuring frequency | 100 kHz | |
| Tolerance | -30/+50 % | |
| Length | 4.5 mm | |
| Height | 3 mm | |
| Width | 3.2 mm | |
| Inductance | 100 µH | |
| Design | SMD 1812 | |
| Version | signal line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 2,500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
