B82787C0104H002 | TDK (EPCOS)

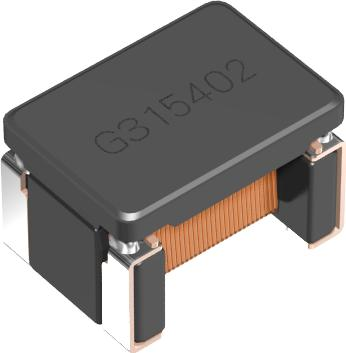

Signal line choke, SMD 1812, 100 µH, 150 mA, B82787C0104H002
Unit Price (€ / pc.)
1.2257 € *
Available: 1,359 pcs.
Total Price:
12.26 € *
Price list
Quantity
Price per unit*
10 pcs.
1.2257 €
50 pcs.
1.0829 €
250 pcs.
0.9401 €
2500 pcs.
0.7378 €
5000 pcs.
0.6783 €
*incl. VAT plus shipping costs
Subject to prior sale
Radial inductor, B82787C0104H002, EPCOS
Features
- Operating temperature range: –40 to +150 °C
- Qualified to AEC-Q200
- Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D
- RoHS-compatible
Applications
- Automotive CAN bus systems
Terminals
- Base material CuSn8
- Electro-plating Sn with Ni underlayer
- Lead-free tinned
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 150 mA | |
| DC resistance | 2 Ω | |
| Measuring frequency | 100 kHz | |
| Tolerance | -30/+50 % | |
| Length | 4.5 mm | |
| Height | 3 mm | |
| Width | 3.2 mm | |
| Inductance | 100 µH | |
| Design | SMD 1812 | |
| Version | signal line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 2,500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
