B82747S6313N061 | TDK (EPCOS)

Power line choke, radial, 950 µH, 31 A, B82747S6313N061

Order No.: 74D7805
EAN: 4099889026368
MPN:
B82747S6313N061
B82747S6313N61
TDK (EPCOS)

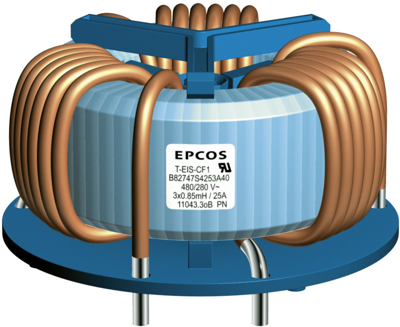

B82747S6313N061 TDK (EPCOS) Fixed Inductors
Image may differ
Print
Key Specification:
Version power line choke
Inductance 950 µH
DC current 31 A
Tolerance ±30 %
DC resistance 1.5 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
22.7409 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1,819.27 € *
*incl. VAT plus shipping costs
Subject to prior sale
80 pcs.
22.7409 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82747S6313N061, EPCOS

Features

  • Approx. 0.5 % stray inductance for symmetrical interference suppression
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • RoHS-compatible

Applications

  • Suppression of common-mode interferences
  • Switch-mode applications
Technical specifications
Tolerance ±30 %
Width 64 mm
Version power line choke
DC current 31 A
Length 64 mm
Height 35 mm
DC resistance 1.5 mΩ
Design radial
Measuring frequency 100 kHz
Inductance 950 µH
Articles of same specification 0
Logistics
Original Packaging Carton with 40 pieces
Customs tariff number 85045000
Compliance
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
