B82747S4423N020 | TDK (EPCOS)

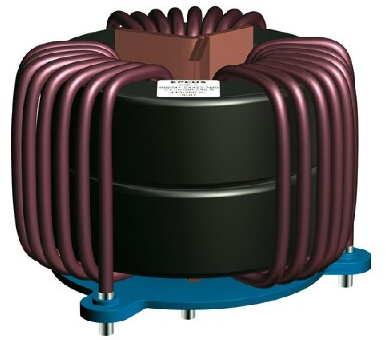

Power line choke, radial, 1.5 mH, 42 A, B82747S4423N020
Order No.: 74D7804
EAN: 4099889026351
MPN:
B82747S4423N020
B82747S4423N20
Unit Price (€ / pc.)
30.3212 € *
Standard delivery time from the manufacturer is: 18 Weeks
Power line choke, B82747S4423N020, EPCOS
Features
- Approx. 0.5 - 0.65 % stray inductance for symmetrical interference suppression
- Suitable for wave soldering
- Design complies with EN 60938-2
- High resonance frequency
- RoHS-compatible
Applications
- Suppression of common-mode interferences
- Switch-mode power applications
- Power inverters
- Frequency converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power line choke | |
| Inductance | 1.5 mH | |
| DC current | 42 A | |
| Tolerance | ±30 % | |
| DC resistance | 2.6 mΩ | |
| Measuring frequency | 10 kHz | |
| Design | radial | |
| Length | 72 mm | |
| Width | 72 mm | |
| Height | 51 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 16 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| SVHC free | No |
