B82747S4203A020 | TDK (EPCOS)

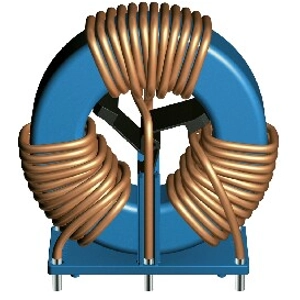

Power line choke, radial, 1.3 mH, 20 A, B82747S4203A020

Order No.: 74D7801
EAN: 4099889026320
MPN:
B82747S4203A020
B82747S4203A20
TDK (EPCOS)
B82747S4203A020 TDK (EPCOS) Fixed Inductors
Image may differ
Print
Key Specification:
Version power line choke
Inductance 1.3 mH
DC current 20 A
Tolerance -30/+50 %
DC resistance 5.2 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
13.6493 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1,501.42 € *
*incl. VAT plus shipping costs
**Subject to prior sale
110 pcs.
13.6493 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82747S4203A020, EPCOS

Features

  • Approx. 1 % stray inductance for symmetrical interference suppression
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • High resonance frequency
  • RoHS-compatible

Applications

  • Suppression of common-mode interferences
  • Switch-mode power applications
  • Frequency converters
Technical specifications
DC current 20 A
Width 28 mm
Height 60 mm
Length 59 mm
DC resistance 5.2 mΩ
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance -30/+50 %
Inductance 1.3 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Bulk with 55 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
