B82747S4183N021 | TDK (EPCOS)

Power line choke, radial, 1.8 mH, 18 A, B82747S4183N021

Order No.: 74D7800
EAN: 4099889026313
MPN:
B82747S4183N021
B82747S4183N21
TDK (EPCOS)
B82747S4183N021 TDK (EPCOS) Fixed Inductors

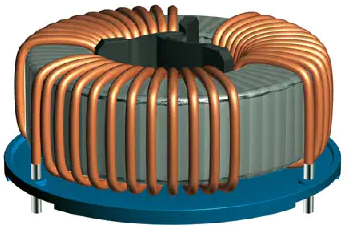

Image may differ
Print
Key Specification:
Version power line choke
Inductance 1.8 mH
DC current 18 A
Tolerance ±30 %
DC resistance 4.7 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
15.8151 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1,012.17 € *
*incl. VAT plus shipping costs
**Subject to prior sale
64 pcs.
15.8151 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82747S4183N021, EPCOS

Features

  • Approx. 1 % stray inductance for symmetrical interference suppression
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • RoHS-compatible

Applications

  • Suppression of common-mode interferences
  • Switch-mode applications
Technical specifications
DC current 18 A
Width 68 mm
Height 33 mm
Length 68 mm
DC resistance 4.7 mΩ
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance ±30 %
Inductance 1.8 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Carton with 32 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
