B82747E6353A040 | TDK (EPCOS)

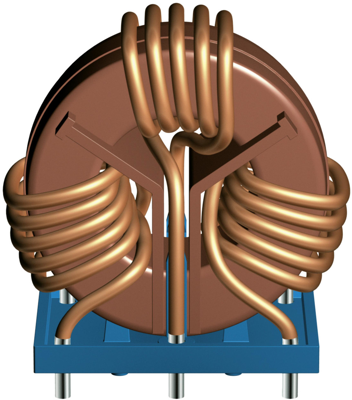

Power line choke, radial, 570 µH, 35 A, B82747E6353A040

Order No.: 74D7795
EAN: 4099889026306
MPN:
B82747E6353A040
B82747E6353A40
TDK (EPCOS)
B82747E6353A040 TDK (EPCOS) Fixed Inductors
Image may differ
Print
Key Specification:
Version power line choke
Inductance 570 µH
DC current 35 A
Tolerance -30/+50 %
DC resistance 1.4 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
16.1364 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
645.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
40 pcs.
16.1364 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82747E6353A040, EPCOS

Features

  • Insulation for high voltage applications
  • Suitable for wave soldering
  • High rated current and rated temperature
  • Approx. 0.6 % stray inductance for symmetrical interference suppression
  • RoHS-compatible

Applications

  • Suppression of common-mode interferences
  • High-voltage switch-mode power applications
  • Solar power inverters
  • Frequency converters
Technical specifications
Inductance 570 µH
DC current 35 A
Width 37 mm
Length 65 mm
Design radial
DC resistance 1.4 mΩ
Version power line choke
Height 66 mm
Tolerance -30/+50 %
Measuring frequency 100 kHz
Articles of same specification 0
Logistics
Country of origin HU
Customs tariff number 85045000
Original Packaging Carton with 40 pieces
Compliance
RoHS conform Yes
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
Date of RoHS guidelines 3/31/15
