B82747E6203A040 | TDK (EPCOS)

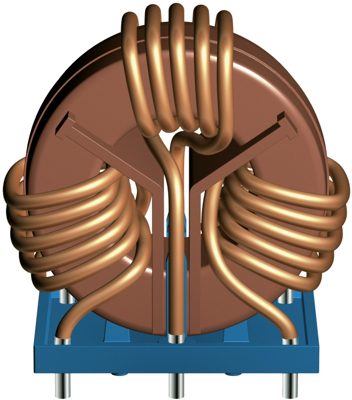

Power line choke, radial, 1.5 mH, 20 A, B82747E6203A040

Order No.: 74D7793
EAN: 4099889026283
MPN:
B82747E6203A040
B82747E6203A40
TDK (EPCOS)
B82747E6203A040 TDK (EPCOS) Fixed Inductors
Image may differ
Print
Key Specification:
Version power line choke
Inductance 1.5 mH
DC current 20 A
Tolerance -30/+50 %
DC resistance 4.2 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
15.5890 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1,247.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
80 pcs.
15.5890 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82747E6203A040, EPCOS

Features

  • Insulation for high voltage applications
  • Suitable for wave soldering
  • High rated current and rated temperature
  • Approx. 0.6 % stray inductance for symmetrical interference suppression
  • RoHS-compatible

Applications

  • Suppression of common-mode interferences
  • High-voltage switch-mode power applications
  • Solar power inverters
  • Frequency converters
Technical specifications
Inductance 1.5 mH
DC current 20 A
Width 37 mm
Length 65 mm
Design radial
DC resistance 4.2 mΩ
Version power line choke
Height 66 mm
Tolerance -30/+50 %
Measuring frequency 10 kHz
Articles of same specification 0
Logistics
Country of origin HU
Customs tariff number 85045000
Original Packaging Carton with 40 pieces
Compliance
RoHS conform Yes
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
Date of RoHS guidelines 3/31/15
