B82746S4103A021 | TDK (EPCOS)

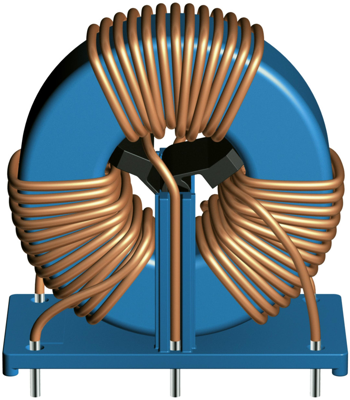

Power line choke, radial, 2 mH, 10 A, B82746S4103A021

Order No.: 74D7787
EAN: 4099889026221
MPN:
B82746S4103A021
B82746S4103A21
TDK (EPCOS)
B82746S4103A021 TDK (EPCOS) Fixed Inductors
Image may differ
Print
Key Specification:
Version power line choke
Inductance 2 mH
DC current 10 A
Tolerance -30/+50 %
DC resistance 9.6 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
9.1749 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1,761.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
192 pcs.
9.1749 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82746S4103A021, EPCOS

Features

  • Approx. 1 % stray inductance for differential-mode interference suppression
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • High resonance frequency
  • RoHS-compatible

Applications

  • Suppression of common-mode interferences
  • Switch-mode power applications
  • Frequency converters
Technical specifications
DC current 10 A
Width 23 mm
Height 47 mm
Length 45 mm
DC resistance 9.6 mΩ
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance -30/+50 %
Inductance 2 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Tray with 96 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
