B82745S6123N002 | TDK (EPCOS)

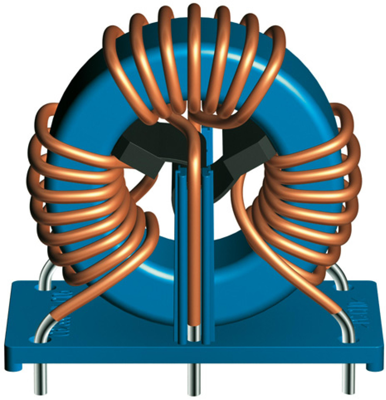

Power line choke, radial, 350 µH, 12 A, B82745S6123N002

Order No.: 74D7785
EAN: 4099889026207
MPN:
B82745S6123N002
B82745S6123N2
TDK (EPCOS)
B82745S6123N002 TDK (EPCOS) Fixed Inductors
Image may differ
Print
Key Specification:
Version power line choke
Inductance 350 µH
DC current 12 A
Tolerance ±30 %
DC resistance 3.7 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
6.7949 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1,141.54 € *
*incl. VAT plus shipping costs
Subject to prior sale
168 pcs.
6.7949 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82745S6123N002, EPCOS

Features

  • Approx. 1 % stray inductance for symmetrical interference suppression
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • RoHS-compatible

Applications

  • Suppression of common-mode interferences
  • Switch-mode applications
Technical specifications
Tolerance ±30 %
Width 23 mm
Version power line choke
DC current 12 A
Length 43 mm
Height 43 mm
DC resistance 3.7 mΩ
Design radial
Inductance 350 µH
Articles of same specification 0
Logistics
Original Packaging Carton with 84 pieces
Customs tariff number 85045000
Compliance
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
