B82734W2132B030 | TDK (EPCOS)

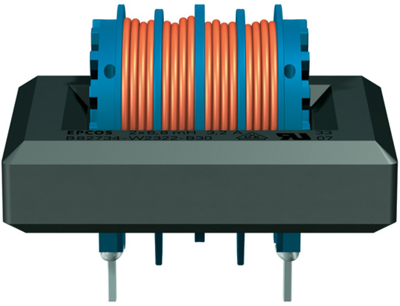

Power line choke, radial, 47 mH, 1.3 A, B82734W2132B030

Order No.: 74D7775
EAN: 4099889026108
MPN:
B82734W2132B030
B82734W2132B30
TDK (EPCOS)
B82734W2132B030 TDK (EPCOS) Fixed Inductors
Image may differ
Print
Key Specification:
Version power line choke
Inductance 47 mH
DC current 1.3 A
Tolerance -30/+50 %
DC resistance 560 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.5585 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
2,046.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
800 pcs.
2.5585 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82734W2132B030, EPCOS

Features

  • High resonance frequency due to 2-section winding
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • Low whirring noise
  • High pulse strength

Applications

  • Suppression of common-mode and differential-mode interferences
  • Electronic ballasts for lamps
  • Switch-mode power applications
Technical specifications
DC current 1.3 A
Width 31 mm
Height 21.7 mm
Length 32.5 mm
DC resistance 560 mΩ
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance -30/+50 %
Inductance 47 mH
Articles of same specification 0
Logistics
Country of origin HU
Customs tariff number 85045000
Original Packaging Carton with 400 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
