B82734R2262B030 | TDK (EPCOS)
Power line choke, radial, 10 mH, 2.6 A, B82734R2262B030
Unit Price (€ / pc.)
2.8084 € *
Available: 1,527 pcs.
Total Price:
2.81 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8084 €
10 pcs.
2.4752 €
100 pcs.
2.1777 €
400 pcs.
2.0349 €
800 pcs.
1.9516 €
*incl. VAT plus shipping costs
Subject to prior sale

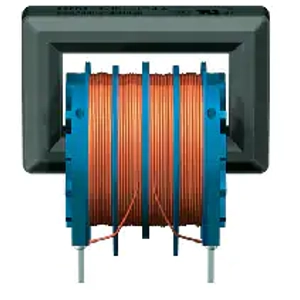

Power line chokes, type TDK/Epcos B82.
D core choke for line applications
Type B82734R.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 2.6 A | |
| DC resistance | 130 mΩ | |
| Saturation current | 2.6 A | |
| Measuring frequency | 10 kHz | |
| Tolerance | -30/+50 % | |

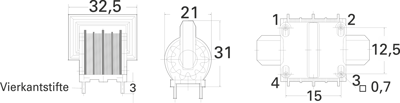

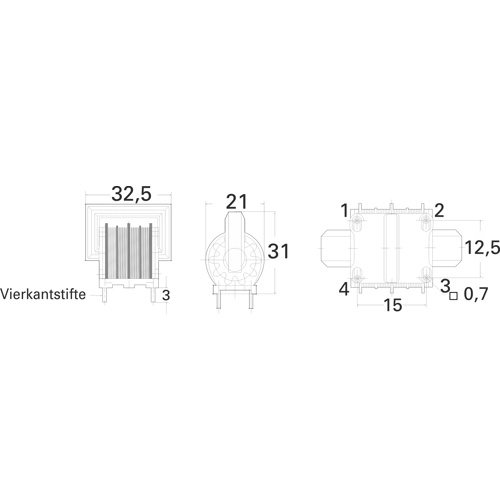

| Length | 21 mm | |
| Height | 15.5 mm | |
| Width | 12.5 mm | |
| Inductance | 10 mH | |
| Design | radial | |
| Version | power line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Tray with 400 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| RoHS conform | Yes |
| SVHC free | No |
