B82733V2701B001 | TDK (EPCOS)

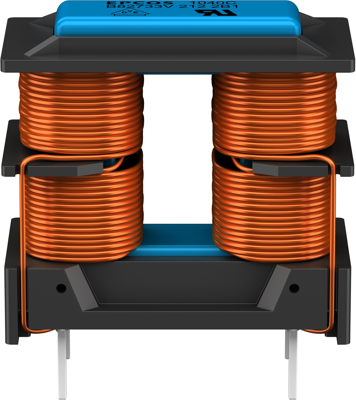

Power line choke, radial, 100 mH, 700 mA, B82733V2701B001
Order No.: 74D7766
EAN: 4099889026016
MPN:
B82733V2701B001
B82733V2701B1
Unit Price (€ / pc.)
2.3086 € *
Standard delivery time from the manufacturer is: 12 Weeks
Power line choke, B82733V2701B001, EPCOS
Features
- High inductance with low resistance
- Suitable for wave soldering
- Design complies with EN 60938-2
- Interference suppression
- High pulse-handling capability
Applications
- Suppression of common-mode and differential-mode interferences
- Electronic ballasts for lamps
- Switch-mode power applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power line choke | |
| Inductance | 100 mH | |
| DC current | 700 mA | |
| Tolerance | ±30 % | |
| DC resistance | 1.81 Ω | |
| Measuring frequency | 10 kHz | |
| Design | radial | |
| Length | 29 mm | |
| Width | 15.5 mm | |
| Height | 27 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 336 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
