B82733V2122B001 | TDK (EPCOS)

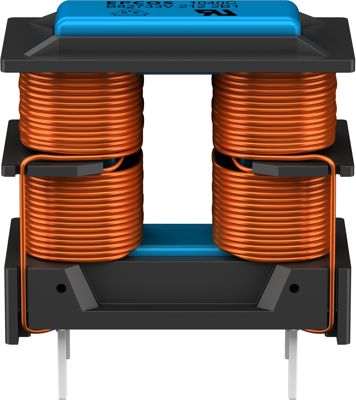

Power line choke, radial, 39 mH, 1.2 A, B82733V2122B001
Order No.: 74D7762
EAN: 4099889025972
MPN:
B82733V2122B001
B82733V2122B1
Unit Price (€ / pc.)
2.3086 € *
Standard delivery time from the manufacturer is: 12 Weeks
Power line choke, B82733V2122B001, EPCOS
Features
- High inductance with low resistance
- Suitable for wave soldering
- Design complies with EN 60938-2
- Interference suppression
- High pulse-handling capability
Applications
- Suppression of common-mode and differential-mode interferences
- Electronic ballasts for lamps
- Switch-mode power applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 1.2 A | |
| Tolerance | ±30 % | |
| Design | radial | |
| Width | 15.5 mm | |
| Height | 27 mm | |
| Inductance | 39 mH | |
| Version | power line choke | |
| Length | 29 mm | |
| DC resistance | 696 mΩ | |
| Measuring frequency | 10 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Tray with 336 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
