B82733F2142B001 | TDK (EPCOS)

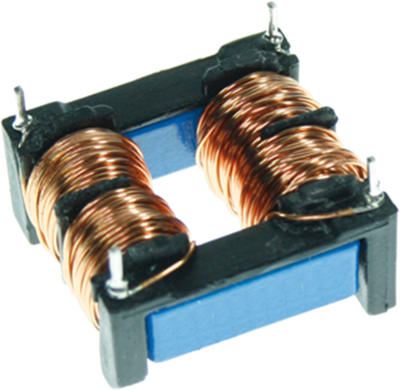

Power line choke, radial, 27 mH, 1.4 A, B82733F2142B001
Unit Price (€ / pc.)
2.0349 € *
Available: 418 pcs.
Total Price:
6.10 € *
Price list
Quantity
Price per unit*
3 pcs.
2.0349 €
15 pcs.
1.8564 €
75 pcs.
1.7017 €
400 pcs.
1.6303 €
800 pcs.
1.5589 €
*incl. VAT plus shipping costs
Subject to prior sale
Power line chokes, type TDK/Epcos B82733F.
Current-compensated frame core double choke for line applications such as electronic ballasts for lamp
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 1.4 A | |
| DC resistance | 440 mΩ | |
| Saturation current | 1.4 A | |
| Measuring frequency | 10 kHz | |
| Tolerance | ±30 % | |
| Length | 26.5 mm | |
| Height | 14 mm | |
| Width | 24.5 mm | |
| Inductance | 27 mH | |
| Design | radial | |
| Version | power line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Carton with 546 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
