B82732R2901B030 | TDK (EPCOS)

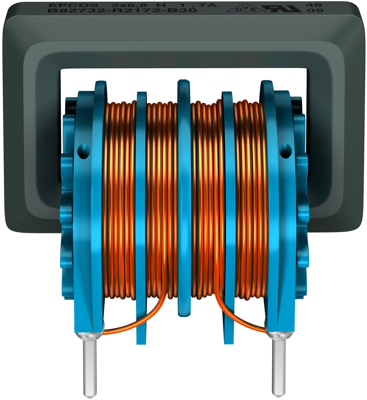

Power line choke, radial, 27 mH, 900 mA, B82732R2901B030

Order No.: 74D7751
EAN: 4099889025934
MPN:
B82732R2901B030
B82732R2901B30
TDK (EPCOS)
B82732R2901B030 TDK (EPCOS) Fixed Inductors
Image may differ
Print
Key Specification:
Version power line choke
Inductance 27 mH
DC current 900 mA
Tolerance -30/+50 %
DC resistance 750 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.8683 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1,195.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
640 pcs.
1.8683 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82732R2901B030, EPCOS

Features

  • High resonance frequency due to 2-section winding
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • Low whirring noise
  • High pulse strength

Applications

  • Suppression of common-mode interferences
  • Switch-mode power applications
  • Electronic ballasts in lamps
Technical specifications
Tolerance -30/+50 %
Width 16.5 mm
Version power line choke
DC current 900 mA
Length 24 mm
Height 23.5 mm
DC resistance 750 mΩ
Design radial
Measuring frequency 10 kHz
Inductance 27 mH
Articles of same specification 0
Logistics
Original Packaging Tray with 640 pieces
Customs tariff number 85045000
Country of origin HU
Compliance
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
