B82732R2701B030 | TDK (EPCOS)

Power line choke, radial, 39 mH, 700 mA, B82732R2701B030

Order No.: 74D7749
EAN: 4099889025927
MPN:
B82732R2701B030
B82732R2701B30
TDK (EPCOS)
B82732R2701B030 TDK (EPCOS) Fixed Inductors

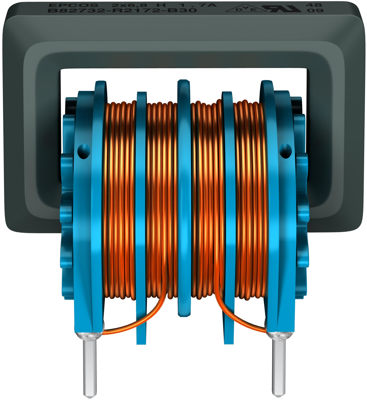

Image may differ
Print
Key Specification:
Version power line choke
Inductance 39 mH
DC current 700 mA
Tolerance -30/+50 %
DC resistance 1.1 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.8683 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1,195.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
640 pcs.
1.8683 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82732R2701B030, EPCOS

Features

  • High resonance frequency due to 2-section winding
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • Low whirring noise
  • High pulse strength

Applications

  • Suppression of common-mode interferences
  • Switch-mode power applications
  • Electronic ballasts in lamps
Technical specifications
DC current 700 mA
Tolerance -30/+50 %
Design radial
Width 16.5 mm
Height 23.5 mm
Inductance 39 mH
Version power line choke
Length 24 mm
DC resistance 1.1 Ω
Measuring frequency 10 kHz
Articles of same specification 0
Logistics
Customs tariff number 85045000
Country of origin HU
Original Packaging Carton with 640 pieces
Compliance
RoHS conform Yes
SVHC free No
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
Date of RoHS guidelines 3/31/15
