B82732F2901B001 | TDK (EPCOS)

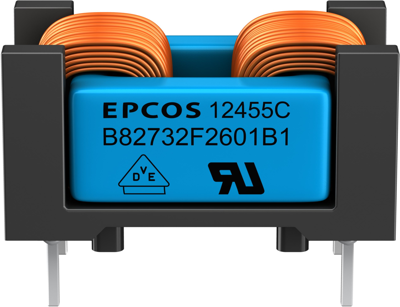

Power line choke, radial, 57 mH, 900 mA, B82732F2901B001
Unit Price (€ / pc.)
1.7850 € *
Standard delivery time from the manufacturer is: 24 Weeks
Power line choke, B82732F2901B001, EPCOS
Features
- High inductance with low resistance
- Suitable for wave soldering
- Design complies with EN 60938-2
- Low height (13.5 mm)
- RoHS-compatible
Applications
- Suppression of common-mode and differential-mode interferences
- Electronic ballasts for lamps
- High power switch-mode power supplies for consumer electronics

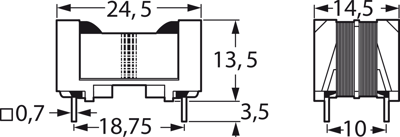

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 24.5 mm | |
| DC current | 900 mA | |
| Height | 13.5 mm | |
| Saturation current | 900 mA | |
| Inductance | 57 mH | |
| Measuring frequency | 10 kHz | |
| Width | 14.5 mm | |
| Design | radial | |
| DC resistance | 770 mΩ | |
| Version | power line choke | |
| Tolerance | -30/+50 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Carton with 770 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
