B82732F2801B001 | TDK (EPCOS)

Power line choke, radial, 69 mH, 800 mA, B82732F2801B001

Order No.: 75D5906
EAN: 4099889040340
MPN:
B82732F2801B001
B82732F2801B1
TDK (EPCOS)

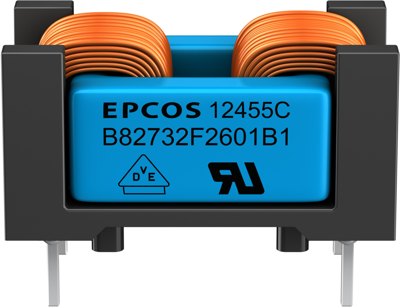

B82732F2801B001 TDK (EPCOS) Fixed Inductors Image 1

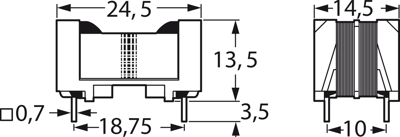

B82732F2801B001 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version power line choke
Inductance 69 mH
DC current 800 mA
Tolerance -30/+50 %
DC resistance 1.1 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.7850 € *
Available: 0 pcs.
Leadtime: 24 Weeks **
Total Price:
1,374.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
770 pcs.
1.7850 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82732F2801B001, EPCOS

Features

  • High inductance with low resistance
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • Low height (13.5 mm)
  • RoHS-compatible

Applications

  • Suppression of common-mode and differential-mode interferences
  • Electronic ballasts for lamps
  • High power switch-mode power supplies for consumer electronics
Technical specifications
DC current 800 mA
Saturation current 800 mA
Width 14.5 mm
Height 13.5 mm
Length 24.5 mm
DC resistance 1.1 Ω
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance -30/+50 %
Inductance 69 mH
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85045000
Original Packaging Carton with 770 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
