B82732F2701B001 | TDK (EPCOS)

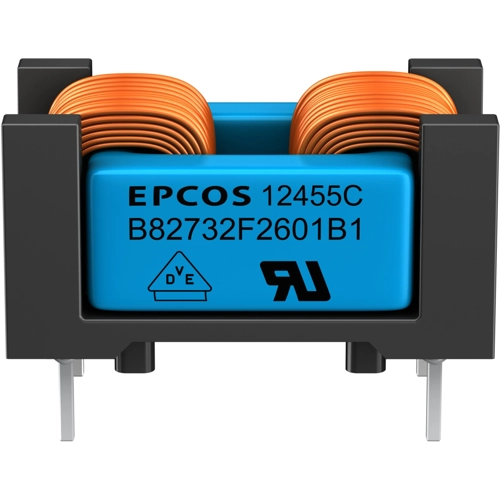

Power line choke, radial, 47 mH, 700 mA, B82732F2701B001
Order No.: 75D5908
EAN: 4099889040357
MPN:
B82732F2701B001
B82732F2701B1
Unit Price (€ / pc.)
1.7850 € *
Standard delivery time from the manufacturer is: 24 Weeks
Power line choke, B82732F2701B001, EPCOS
Features
- High inductance with low resistance
- Suitable for wave soldering
- Design complies with EN 60938-2
- Low height (13.5 mm)
- RoHS-compatible
Applications
- Suppression of common-mode and differential-mode interferences
- Electronic ballasts for lamps
- High power switch-mode power supplies for consumer electronics

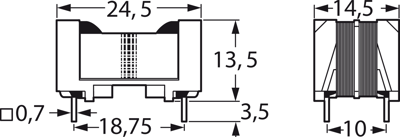

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 47 mH | |
| Length | 24.5 mm | |
| Saturation current | 700 mA | |
| Design | radial | |
| DC resistance | 1.26 Ω | |
| Tolerance | -30/+50 % | |
| DC current | 700 mA | |
| Width | 14.5 mm | |
| Measuring frequency | 10 kHz | |
| Height | 13.5 mm | |
| Version | power line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Carton with 770 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
