B82732F2132B001 | TDK (EPCOS)

Power line choke, radial, 15 mH, 1.3 A, B82732F2132B001

Order No.: 75D5902
EAN: 4099889040326
MPN:
B82732F2132B001
B82732F2132B1

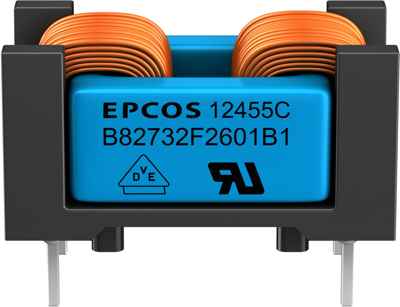

B82732F2132B001 TDK (EPCOS) Fixed Inductors Image 1

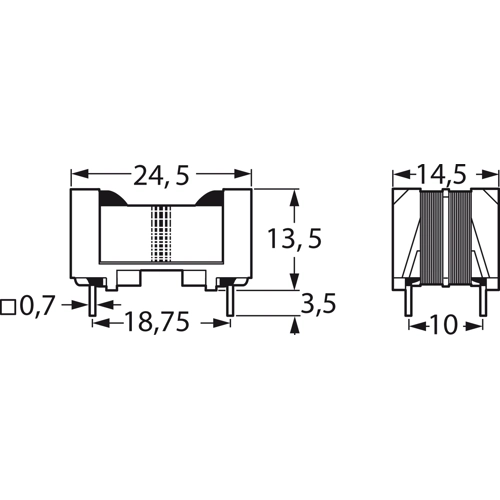

B82732F2132B001 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
1.7850 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
1,374.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
770 pcs.
1.7850 €

Power line choke, B82732F2132B001, EPCOS

Features

  • High inductance with low resistance
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • Low height (13.5 mm)
  • RoHS-compatible

Applications

  • Suppression of common-mode and differential-mode interferences
  • Electronic ballasts for lamps
  • High power switch-mode power supplies for consumer electronics
Technical specifications
Filter Property Value
Inductance 15 mH
Saturation current 1.21 A
DC current 1.3 A
Width 14.5 mm
Length 24.5 mm
Design radial
DC resistance 430 mΩ
Version power line choke
Height 13.5 mm
Tolerance -30/+50 %
Measuring frequency 10 kHz
Logistics
Property Value
Country of origin CN
Customs tariff number 85045000
Original Packaging Carton with 770 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
