B82731M2501A030 | TDK (EPCOS)

Power line choke, radial, 47 mH, 500 mA, B82731M2501A030

Order No.: 74D7740
EAN: 4099889025910
MPN:
B82731M2501A030
B82731M2501A30
TDK (EPCOS)
B82731M2501A030 TDK (EPCOS) Fixed Inductors

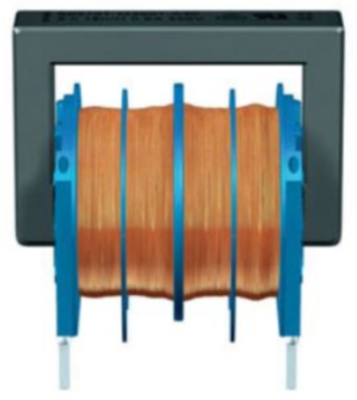

Image may differ
Print
Key Specification:
Version power line choke
Inductance 47 mH
DC current 500 mA
Tolerance -30/+50 %
DC resistance 2 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.7255 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
2,760.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1600 pcs.
1.7255 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82731M2501A030, EPCOS

Features

  • Approx. 1 % stray inductance for symmetrical interference suppression
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • Low whirring noise
  • High pulse strength

Applications

  • Suppression of common-mode interferences
  • Compact switch-mode power applications
  • Electronic ballasts in lamps
Technical specifications
Version power line choke
Inductance 47 mH
DC current 500 mA
Tolerance -30/+50 %
DC resistance 2 Ω
Measuring frequency 10 kHz
Design radial
Length 21 mm
Width 15 mm
Height 20 mm
Articles of same specification 0
Logistics
Country of origin HU
Original Packaging Tray with 800 pieces
Customs tariff number 85045000
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
