B82730U3951A020 | TDK (EPCOS)
Power line choke, radial, 2.2 mH, 950 mA, B82730U3951A020
Order No.: 75D5786
EAN: 4099889040210
MPN:
B82730U3951A020
B82730U3951A20
Unit Price (€ / pc.)
1.4518 € *
Standard delivery time from the manufacturer is: 19 Weeks
Power line chokes, type TDK/Epcos B82730U.

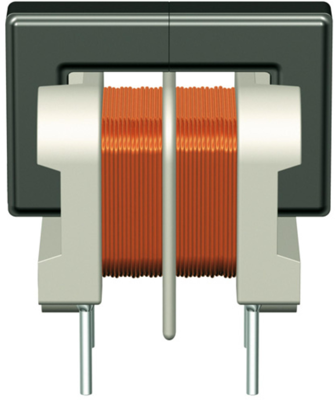

Current-compensated U core double choke for line applications ferrite core, closed PET (UL 94 V-0) coil former, not molded
Technical specifications
| DC current | 950 mA | |
| Saturation current | 950 mA | |

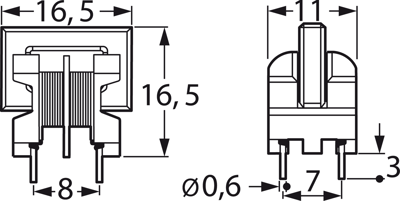

| Width | 11 mm | |
| Height | 16.5 mm | |
| Length | 16.5 mm | |
| DC resistance | 410 mΩ | |
| Measuring frequency | 10 kHz | |
| Version | power line choke | |
| Design | radial | |
| Tolerance | -30/+50 % | |
| Inductance | 2.2 mH |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 728 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
