B82730U3751A020 | TDK (EPCOS)

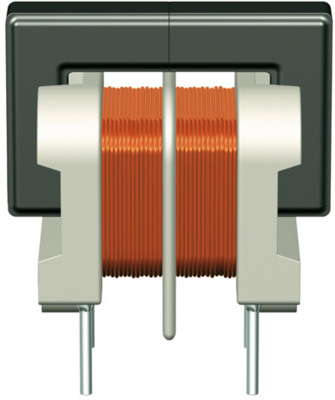

Power line choke, radial, 3.9 mH, 750 mA, B82730U3751A020
Order No.: 75D5788
EAN: 4099889040227
MPN:
B82730U3751A020
B82730U3751A20
Unit Price (€ / pc.)
1.4518 € *
Standard delivery time from the manufacturer is: 30 Weeks
Power line chokes, type TDK/Epcos B82730U.
Current-compensated U core double choke for line applications ferrite core, closed PET (UL 94 V-0) coil former, not molded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power line choke | |
| Inductance | 3.9 mH | |
| DC current | 750 mA | |
| Tolerance | -30/+50 % | |
| DC resistance | 700 mΩ | |
| Saturation current | 750 mA | |
| Measuring frequency | 10 kHz | |

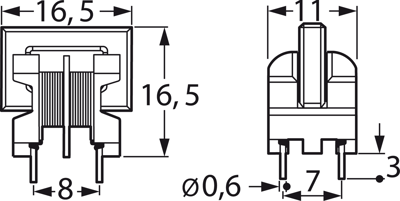

| Design | radial | |
| Length | 16.5 mm | |
| Width | 11 mm | |
| Height | 16.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 728 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
