B82730U3601A020 | TDK (EPCOS)

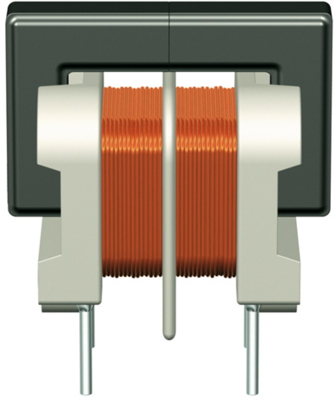

Power line choke, radial, 4.7 mH, 600 mA, B82730U3601A020
Order No.: 75D5790
EAN: 4099889040234
MPN:
B82730U3601A020
B82730U3601A20
Unit Price (€ / pc.)
1.4518 € *
Standard delivery time from the manufacturer is: 30 Weeks
Power line choke, B82730U3601A020, EPCOS
Features
- Approx. 1.3 % stray inductance for symmetrical interference suppression
- Suitable for wave soldering
- Design complies with EN 60938-2
- Low whirring noise
- High resonance frequency
Applications
- Suppression of common-mode interferences
- Compact switch-mode power applications
- Electronic ballasts in lamps
- Suitable for white goods applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power line choke | |
| Inductance | 4.7 mH | |
| DC current | 600 mA | |
| Tolerance | -30/+50 % | |
| DC resistance | 920 mΩ | |
| Saturation current | 600 mA | |
| Measuring frequency | 10 kHz | |
| Design | radial | |
| Length | 16.5 mm | |
| Width | 11 mm | |
| Height | 16.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 728 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
