B82730U3451A020 | TDK (EPCOS)

Power line choke, radial, 10 mH, 450 mA, B82730U3451A020

Order No.: 75D5792
EAN: 4099889040241
MPN:
B82730U3451A020
B82730U3451A20
Series: B82730U
B82730U3451A020 TDK (EPCOS) Fixed Inductors Image 1
B82730U3451A020 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
1.4518 € *
Standard delivery time from the manufacturer is: 30 Weeks
Total Price:
1,056.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
728 pcs.
1.4518 €

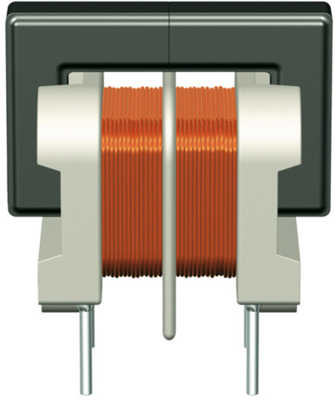

Power line chokes, type TDK/Epcos B82730U.

Current-compensated U core double choke for line applications ferrite core, closed PET (UL 94 V-0) coil former, not molded

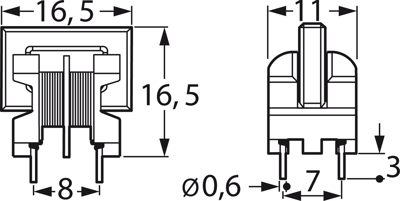

Technical specifications
Filter Property Value
Inductance 10 mH
Saturation current 450 mA
DC current 450 mA
Width 11 mm
Length 16.5 mm
Design radial
DC resistance 1.75 Ω
Version power line choke
Height 16.5 mm
Tolerance -30/+50 %
Measuring frequency 10 kHz
Logistics
Property Value
Country of origin CN
Customs tariff number 85045000
Original Packaging Bulk with 728 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
