B82726S3543N040 | TDK (EPCOS)

Power line choke, radial, 190 µH, 54 A, B82726S3543N040

Order No.: 74D7710
EAN: 4099889025767
MPN:
B82726S3543N040
B82726S3543N40
TDK (EPCOS)

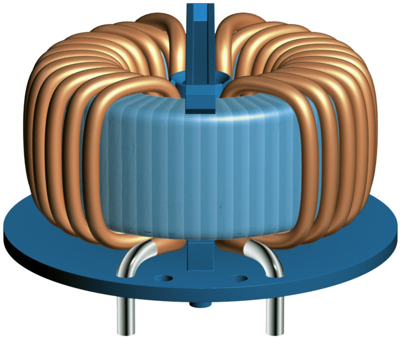

B82726S3543N040 TDK (EPCOS) Fixed Inductors
Image may differ
Print
Key Specification:
Version power line choke
Inductance 190 µH
DC current 54 A
Tolerance -30/+50 %
DC resistance 1.1 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
16.3506 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1,962.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
120 pcs.
16.3506 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82726S3543N040, EPCOS

Features

    Approx. 1 % stray inductance for symmetrical interference suppression
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • RoHS-compatible

Applications

  • Suppression of common-mode interferences
  • Switch-mode applications
Technical specifications
Version power line choke
Inductance 190 µH
DC current 54 A
Tolerance -30/+50 %
DC resistance 1.1 mΩ
Measuring frequency 100 kHz
Design radial
Length 55 mm
Width 24 mm
Height 50 mm
Articles of same specification 0
Logistics
Original Packaging Carton with 60 pieces
Customs tariff number 85045000
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
