B82726S2203A020 | TDK (EPCOS)
Power line choke, radial, 1.6 mH, 20 A, B82726S2203A020
Unit Price (€ / pc.)
12.6854 € *
Standard delivery time from the manufacturer is: 18 Weeks
Power line chokes, type TDK/Epcos B82726S.

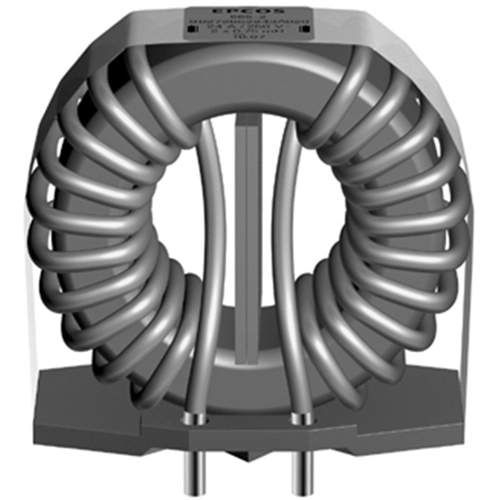

Current-compensated ring core double choke for line applications. Ferrite core, choke and insulation fixed to the polycarbonate (UL 94 V-0) base plate

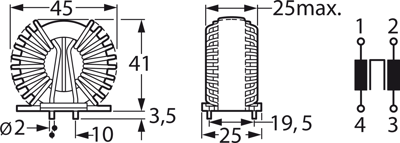

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 1.6 mH | |
| Length | 45 mm | |
| Saturation current | 20 A | |
| Design | radial | |
| DC resistance | 4.5 mΩ | |
| Tolerance | -30/+50 % | |
| DC current | 20 A | |
| Width | 25 mm | |
| Measuring frequency | 10 kHz | |
| Height | 41 mm | |
| Version | power line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | UA |
| Original Packaging | Bulk with 91 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
