B82726E6263A040 | TDK (EPCOS)

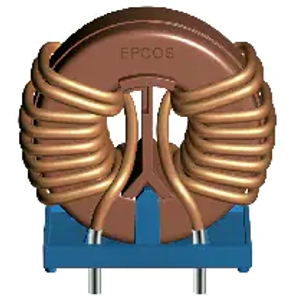

Power line choke, radial, 600 µH, 26 A, B82726E6263A040

Order No.: 74D7705
EAN: 4099889025729
MPN:
B82726E6263A040
B82726E6263A40
TDK (EPCOS)
B82726E6263A040 TDK (EPCOS) Fixed Inductors
Image may differ
Print
Key Specification:
Version power line choke
Inductance 600 µH
DC current 26 A
Tolerance -30/+50 %
DC resistance 1.7 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
9.1749 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1,761.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
192 pcs.
9.1749 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82726E6263A040, EPCOS

Features

  • Insulation for high voltage applications
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • High rated current and rated temperature
  • RoHS-compatible

Applications

  • Suppression of common-mode interferences
  • High-voltage switch-mode power applications
  • Power inverters
  • Frequency converters
Technical specifications
Tolerance -30/+50 %
Width 26 mm
Version power line choke
DC current 26 A
Length 48 mm
Height 45 mm
DC resistance 1.7 mΩ
Design radial
Measuring frequency 100 kHz
Inductance 600 µH
Articles of same specification 0
Logistics
Original Packaging Carton with 96 pieces
Customs tariff number 85045000
Country of origin HU
Compliance
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
