B82725S2602N041 | TDK (EPCOS)
Power line choke, radial, 7.8 mH, 6 A, B82725S2602N041
Order No.: 75D546
EAN: 4099889039887
MPN:
B82725S2602N041
B82725S2602N41
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
7.1400 € *
Standard delivery time from the manufacturer is: 18 Weeks
Power line chokes, type TDK/Epcos B82725S.
Current-compensated ring core double choke for line applications. ferrite core, choke and insulation fixed to the polycarbonate (UL 94 V-0) base plate
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power line choke | |
| Inductance | 7.8 mH | |
| DC current | 6 A | |
| Tolerance | ±30 % | |
| DC resistance | 24 mΩ | |
| Measuring frequency | 10 kHz | |

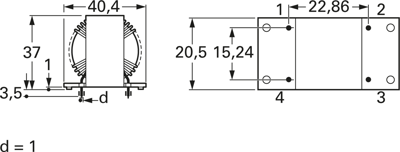

| Design | radial | |
| Length | 40.4 mm | |
| Width | 20.5 mm | |
| Height | 37 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 80 pieces |
| Country of origin | RU |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| SVHC free | No |
