B82725S2103N004 | TDK (EPCOS)
Power line choke, radial, 3.3 mH, 10 A, B82725S2103N004
Unit Price (€ / pc.)
8.3062 € *
Standard delivery time from the manufacturer is: 16 Weeks
Power line chokes, type TDK/Epcos B82725S.
Current-compensated ring core double choke for line applications. ferrite core, choke and insulation fixed to the polycarbonate (UL 94 V-0) base plate

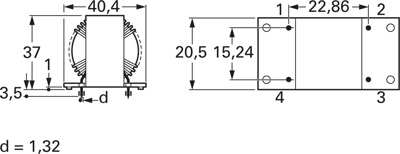

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 3.3 mH | |
| Length | 40.4 mm | |
| Saturation current | 10 A | |
| Design | radial | |
| DC resistance | 13.5 mΩ | |
| Tolerance | ±30 % | |
| DC current | 10 A | |
| Width | 20.5 mm | |
| Measuring frequency | 10 kHz | |
| Height | 37 mm | |
| Version | power line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | UA |
| Original Packaging | Carton with 80 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
