B82725A2602N001 | TDK (EPCOS)
Power line choke, radial, 3.9 mH, 6 A, B82725A2602N001
Unit Price (€ / pc.)
5.8310 € *
Available: 212 pcs.
Total Price:
5.83 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8310 €
10 pcs.
5.1289 €
160 pcs.
4.4982 €
320 pcs.
4.3316 €
1280 pcs.
4.0460 €
*incl. VAT plus shipping costs
Subject to prior sale
Power line chokes, type TDK/Epcos B82721A./B82721K.
Current-compensated ring core double choke for line applications. Ferrite core, polyurethane potting, flame retardant cup and mold (UL 94 V-0), connecting pins according to grid
Design A, horizontal, type B82725A.

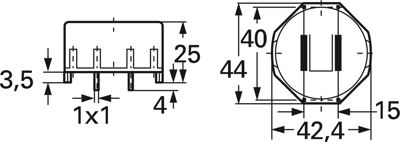

Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 6 A | |
| Tolerance | ±30 % | |
| Saturation current | 6 A | |
| Design | radial | |
| Width | 42.4 mm | |
| Height | 25 mm | |
| Inductance | 3.9 mH | |
| Version | power line choke | |
| Length | 44 mm | |
| DC resistance | 40 mΩ | |
| Measuring frequency | 10 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | HU |
| Original Packaging | Carton with 160 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| Date of RoHS guidelines | 3/31/15 |
