B82724J8482N040 | TDK (EPCOS)

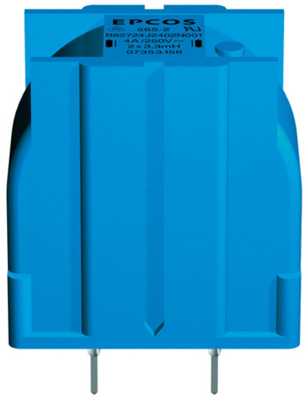

Power line choke, radial, 4.7 mH, 4.8 A, B82724J8482N040

Order No.: 53D4771
EAN: 4099889001587
MPN:
B82724J8482N040
B82724J8482N 40
TDK (EPCOS)
B82724J8482N040 TDK (EPCOS) Fixed Inductors
Image may differ
Print
Key Specification:
Version power line choke
Inductance 4.7 mH
DC current 4.8 A
Tolerance ±30 %
DC resistance 32 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
3.6295 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
1,742.16 € *
*incl. VAT plus shipping costs
**Subject to prior sale
480 pcs.
3.6295 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82724J8482N040, EPCOS

Features

  • High resonance frequency due to special winding technique
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • Approx. 1% stray inductance for symmetrical interference suppression
  • RoHS-compatible

Applications

  • Suppression of common-mode interferences
  • Switch-mode power applications
  • Electronic ballasts in lamps
  • Power inverters
Technical specifications
DC current 4.8 A
Width 18.5 mm
Height 33.2 mm
Length 31.3 mm
DC resistance 32 mΩ
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance ±30 %
Inductance 4.7 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Tray with 240 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
