B82724J2452U020 | TDK (EPCOS)

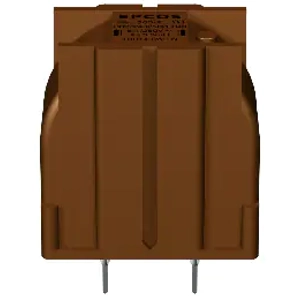

Power line choke, radial, 2.7 mH, 4.5 A, B82724J2452U020
Order No.: 74D7675
EAN: 4099889025439
MPN:
B82724J2452U020
B82724J2452U20
Unit Price (€ / pc.)
3.0226 € *
Standard delivery time from the manufacturer is: 8 Weeks
Power line choke, B82724J2452U020, EPCOS
Features
- High resonance frequency due to special winding technique
- Suitable for wave soldering
- Design complies with EN 60938-2
- Approx. 1% stray inductance for symmetrical interference suppression
- RoHS-compatible
Applications
- Suppression of common-mode interferences
- Switch-mode power applications
- Electronic ballasts in lamps
- Power inverters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power line choke | |
| Inductance | 2.7 mH | |
| DC current | 4.5 A | |
| Tolerance | ±30 % | |
| DC resistance | 36 mΩ | |
| Measuring frequency | 10 kHz | |
| Design | radial | |
| Length | 31.3 mm | |
| Width | 18.5 mm | |
| Height | 33.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Tray with 240 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
