B82724A2602N020 | TDK (EPCOS)
Power line choke, radial, 1.8 mH, 6 A, B82724A2602N020
Unit Price (€ / pc.)
4.2959 € *
Available: 275 pcs.
Total Price:
4.30 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2959 €
10 pcs.
3.7723 €
300 pcs.
3.3201 €
600 pcs.
3.1892 €
1200 pcs.
3.0583 €
*incl. VAT plus shipping costs
Subject to prior sale
Power line chokes, type TDK/Epcos B82721A./B82721K.
Current-compensated ring core double choke for line applications. Ferrite core, polyurethane potting, flame retardant cup and mold (UL 94 V-0), connecting pins according to grid
Design A horizontal, J vertical, type B82724A./B82724J.

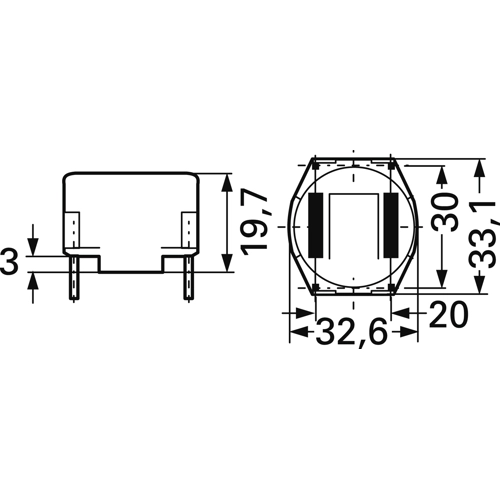

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 1.8 mH | |
| Length | 33.1 mm | |
| Saturation current | 6 A | |
| Design | radial | |
| DC resistance | 31 mΩ | |
| Tolerance | ±30 % | |
| DC current | 6 A | |
| Width | 32.6 mm | |
| Measuring frequency | 10 kHz | |
| Height | 19.7 mm | |
| Version | power line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Carton with 300 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
