B82723J2102N001 | TDK (EPCOS)
Power line choke, radial, 27 mH, 1 A, B82723J2102N001
Unit Price (€ / pc.)
4.0817 € *
Available: 555 pcs.
Total Price:
4.08 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0817 €
10 pcs.
3.5938 €
100 pcs.
3.1535 €
320 pcs.
2.9869 €
1280 pcs.
2.7965 €
*incl. VAT plus shipping costs
Subject to prior sale
Power line chokes, type TDK/Epcos B82721A./B82721K.
Current-compensated ring core double choke for line applications. Ferrite core, polyurethane potting, flame retardant cup and mold (UL 94 V-0), connecting pins according to grid
Design A horizontal, J vertical, type B82723A./B82723J.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power line choke | |
| DC resistance | 750 mΩ | |
| Saturation current | 1 A | |
| DC current | 1 A | |
| Measuring frequency | 10 kHz | |

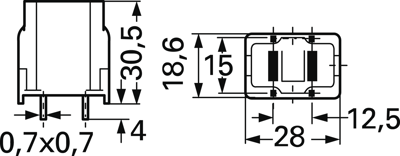

| Height | 30.5 mm | |
| Tolerance | ±30 % | |
| Width | 18.6 mm | |
| Length | 28 mm | |
| Design | radial | |
| Inductance | 27 mH |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 320 pieces |
| Customs tariff number | 85045000 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| SVHC free | No |
