B82721K2601N020 | TDK (EPCOS)

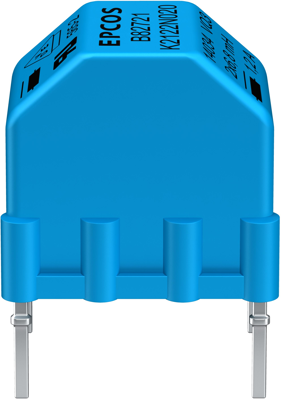

Power line choke, radial, 15 mH, 600 mA, B82721K2601N020

Order No.: 74D7592
EAN: 4099889024739
MPN:
B82721K2601N020
B82721K2601N20
TDK (EPCOS)
B82721K2601N020 TDK (EPCOS) Fixed Inductors
Image may differ
Print
Key Specification:
Version power line choke
Inductance 15 mH
DC current 600 mA
Tolerance ±30 %
DC resistance 700 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.8802 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
1,353.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
720 pcs.
1.8802 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82721K2601N020, EPCOS

Features

  • High resonance frequency due to special winding technique
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • Approx. 1% stray inductance for symmetrical interference suppression
  • RoHS-compatible

Applications

  • Suppression of common-mode interferences
  • Switch-mode power applications
  • Electronic ballasts in lamps
  • Power inverters
Technical specifications
DC current 600 mA
Width 23.5 mm
Height 20 mm
Length 18.2 mm
DC resistance 700 mΩ
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance ±30 %
Inductance 15 mH
Articles of same specification 0
Logistics
Country of origin HU
Customs tariff number 85045000
Original Packaging Carton with 720 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
