B82721K2501U031 | TDK (EPCOS)

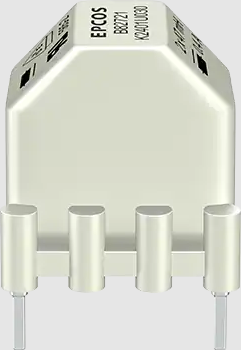

Power line choke, radial, 27 mH, 500 mA, B82721K2501U031

Order No.: 76D9927
EAN: 4099889046120
MPN:
B82721K2501U031
B82721K2501U31
TDK (EPCOS)
B82721K2501U031 TDK (EPCOS) Fixed Inductors
Image may differ
Print
Key Specification:
Version power line choke
Inductance 27 mH
DC current 500 mA
Tolerance ±30 %
DC resistance 1.14 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.023 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
1,456.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
720 pcs.
2.023 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82721K2501U031, EPCOS

Features

  • High resonance frequency due to special winding technique
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • Approx. 1% stray inductance for symmetrical interference suppression
  • RoHS-compatible

Applications

  • Suppression of common-mode interferences
  • Switch-mode power applications
  • Household appliances
  • Heating control systems
Technical specifications
DC current 500 mA
Width 13.2 mm
Height 20 mm
Length 18.2 mm
DC resistance 1.14 Ω
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance ±30 %
Inductance 27 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Carton with 720 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
