B82721K2501U030 | TDK (EPCOS)

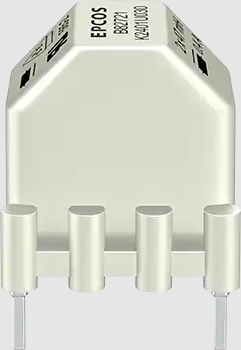

Power line choke, radial, 39 mH, 500 mA, B82721K2501U030
Order No.: 76D9926
EAN: 4099889046113
MPN:
B82721K2501U030
B82721K2501U30
Unit Price (€ / pc.)
2.023 € *
Standard delivery time from the manufacturer is: 6 Weeks
Power line choke, B82721K2501U030, EPCOS
Features
- High resonance frequency due to special winding technique
- Suitable for wave soldering
- Design complies with EN 60938-2
- Approx. 1% stray inductance for symmetrical interference suppression
- RoHS-compatible
Applications
- Suppression of common-mode interferences
- Switch-mode power applications
- Household appliances
- Heating control systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power line choke | |
| Inductance | 39 mH | |
| DC current | 500 mA | |
| Tolerance | ±30 % | |
| DC resistance | 1.38 Ω | |
| Measuring frequency | 10 kHz | |
| Design | radial | |
| Length | 18.2 mm | |
| Width | 13.2 mm | |
| Height | 20 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 720 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| SVHC free | No |
| RoHS conform | Yes |
