B82721K2402N020 | TDK (EPCOS)

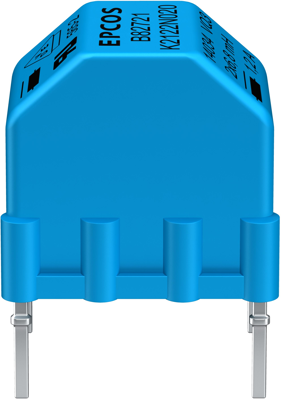

Power line choke, radial, 700 µH, 4 A, B82721K2402N020

Order No.: 74D7590
EAN: 4099889024715
MPN:
B82721K2402N020
B82721K2402N20
TDK (EPCOS)
B82721K2402N020 TDK (EPCOS) Fixed Inductors
Image may differ
Print
Key Specification:
Version power line choke
Inductance 700 µH
DC current 4 A
Tolerance ±30 %
DC resistance 30 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.8802 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
1,353.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
720 pcs.
1.8802 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82721K2402N020, EPCOS

Features

  • High resonance frequency due to special winding technique
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • Approx. 1% stray inductance for symmetrical interference suppression
  • RoHS-compatible

Applications

  • Suppression of common-mode interferences
  • Switch-mode power applications
  • Electronic ballasts in lamps
  • Power inverters
Technical specifications
DC current 4 A
Width 23.5 mm
Height 20 mm
Length 18.2 mm
DC resistance 30 mΩ
Measuring frequency 100 kHz
Version power line choke
Design radial
Tolerance ±30 %
Inductance 700 µH
Articles of same specification 0
Logistics
Country of origin HU
Customs tariff number 85045000
Original Packaging Carton with 720 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
