B82721A2701N020 | TDK (EPCOS)

Power line choke, radial, 10 mH, 700 mA, B82721A2701N020

Order No.: 75D4972
EAN: 4099889039627
MPN:
B82721A2701N020
B82721A2701N20
Series: B82721A
B82721A2701N020 TDK (EPCOS) Fixed Inductors Image 1
B82721A2701N020 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
2.1658 € *
Available: 492 pcs.
Leadtime: On Request **
Total Price:
4.33 € *
Price list
Quantity
Price per unit*
2 pcs.
2.1658 €
25 pcs.
1.9397 €
150 pcs.
1.7612 €
500 pcs.
1.6779 €
1000 pcs.
1.5827 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power line chokes, type TDK/Epcos B82721A./B82721K.

Current-compensated ring core double choke for line applications. Ferrite core, polyurethane potting, flame retardant cup and mold (UL 94 V-0), connecting pins according to grid

Technical specifications
DC current 700 mA

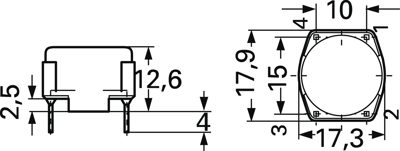

Width 17.3 mm
Height 12.6 mm
Length 17.9 mm
DC resistance 550 mΩ
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance ±30 %
Inductance 10 mH
Logistics
Country of origin HU
Customs tariff number 85045000
Original Packaging Carton with 600 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
